EMMETI PIPE CONNECTOR AND ADAPTOR

MA/01306252 Female 24x19 - Male M32x1.5 fitting, allowing the 26x3 multilayer pipes to be connected to the 24x19 threaded outlets of the distribution manifolds (with 50 mm spacing) using the special monobloc seals with M32x1.5 thread. Complete with O-Ring and adapter on female side.

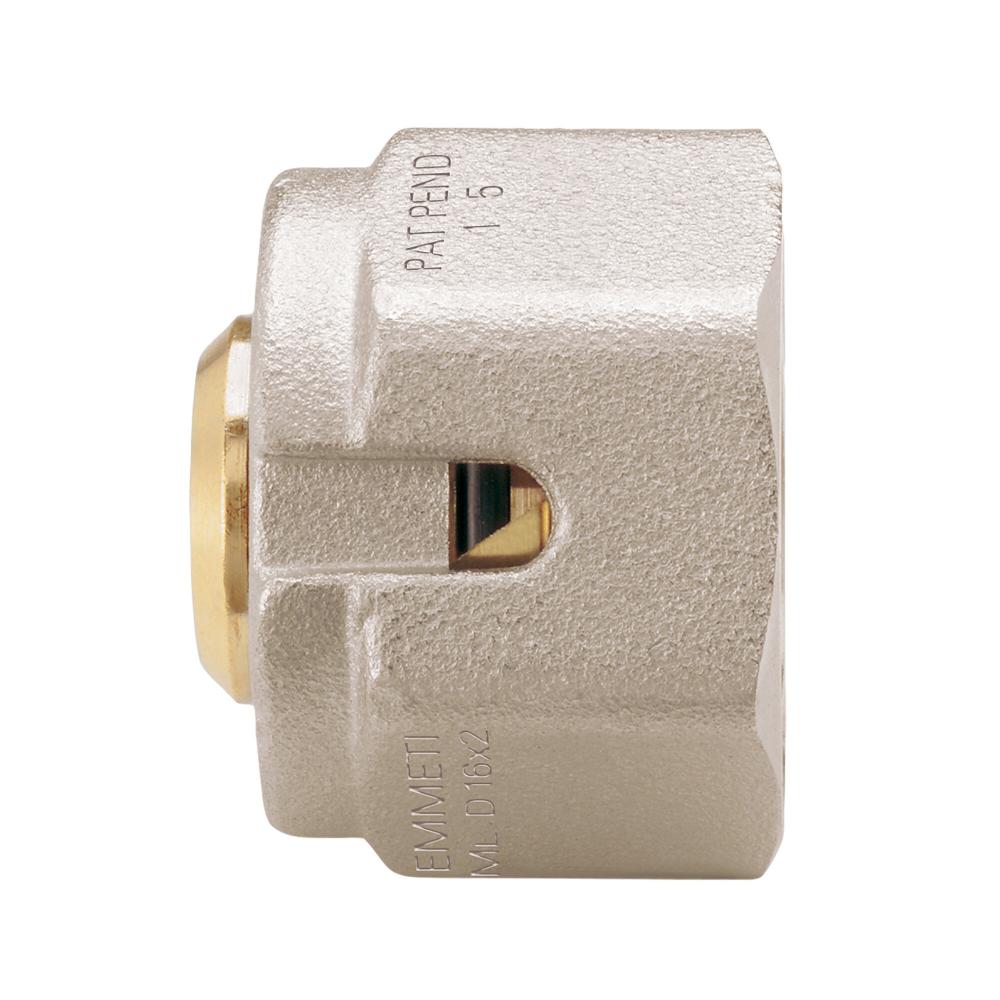

MA/28100368 Nickel-plated monobloc seal for multilayer pipes, making it easier to install the pipes themselves, and most importantly, requiring fewer tools. The hydraulic seal is guaranteed by the system with three O-Rings and serrated compression ferrule. All the fittings are equipped with a special ring in PTFE, which electrically insulates the aluminium from the brass fitting.
The monobloc seal for multilayer pipes is supplied with its components already assembled and ready for insertion of the pipe. The opening carved into the nut makes it possible to check that the fitting has been fully inserted.
